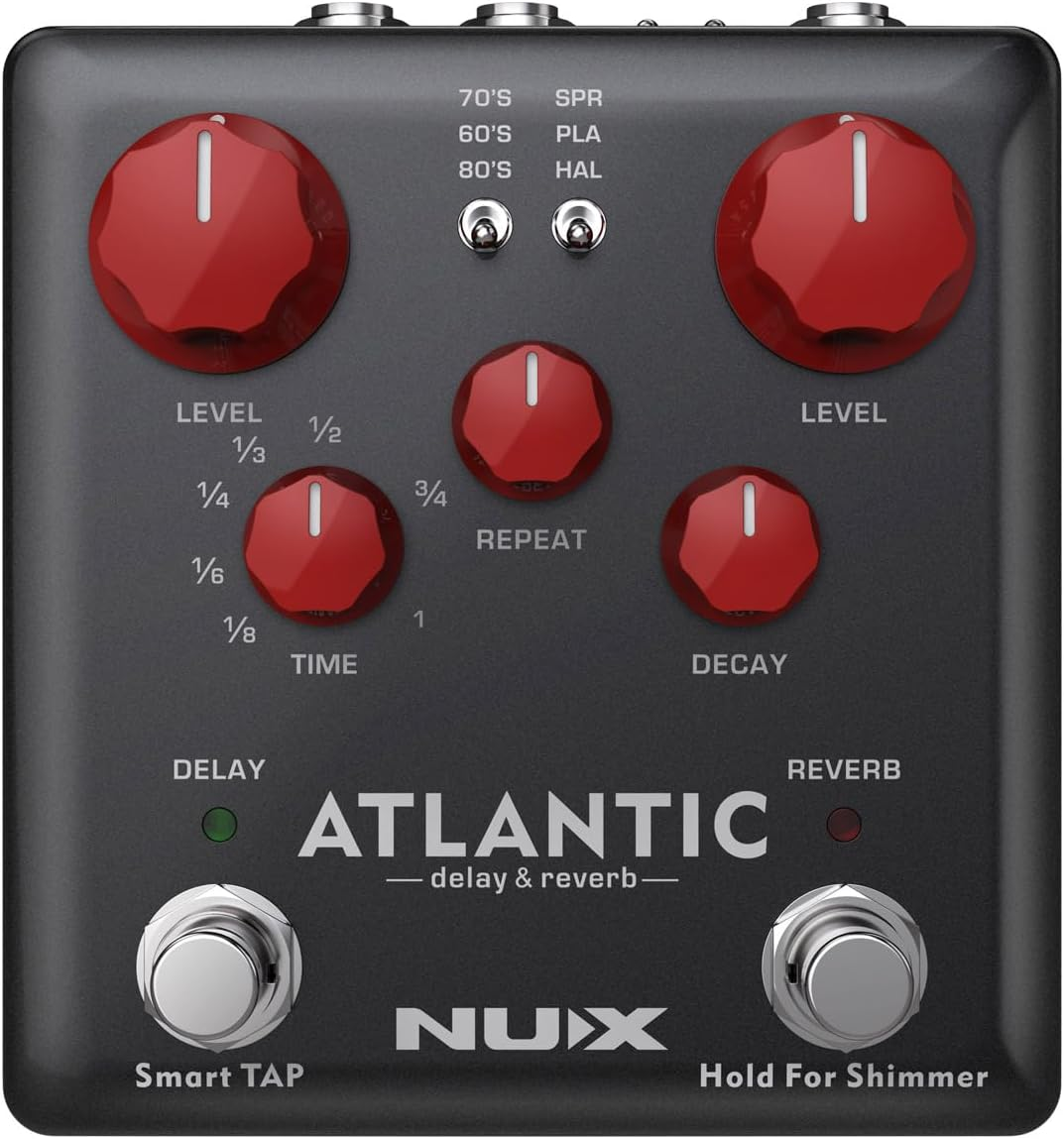

NUX Atlantic Multi Delay and Reverb Effect Pedal

The NUX Atlantic pedal covers several Delay and Reverb types that are very representative in history: 60's Tape-Echo, 70's BBD Analog Delay, 80's Digital Delay, Spring Reverb, Plate Reverb and Hall Reverb. The latest algorithms with Core Image Technology from NUX offers you not only these classic effects, but also modern Shimmer and Freeze effects that inspire you to create dreamy musical ideas! Its patented Smart TAP function automatically understands if you want to turn on/off the delay or tap in the tempo.

3 Delay Effects - 70's Analog, 60's Tape and 80's Digital
Delay Level, Time and Repeat
NUX SMART TAP with Tap Subdivision Options
3 Reverb Effects - Spring, Plate and Hall
Reverb Level and Decay
Plate Reverb with Shimmering Effect
TRS Input - Effect Loop Connection via Insert or "Y" cable
Input Level Switch (-10dB / +4dB)
Parallel or Serial Output and Inside Routing
Stereo Output
USB Port for Firmware Updates

Sampling Rate: 44.1kHz
A/D Converter: 32 bit
Signal Processing: 32 bit
Frequency Response: 20Hz ~ 20kHz
THD+N: -100dBu(A-Weighting)
Dynamic Range: 102dB
Input Impedance: 1MΩ
Output Impedance: 1kΩ
Power: 9V DC
Dimensions: 105mm(L) x 115mm(W) x 57mm(H)
Weight: 420g
