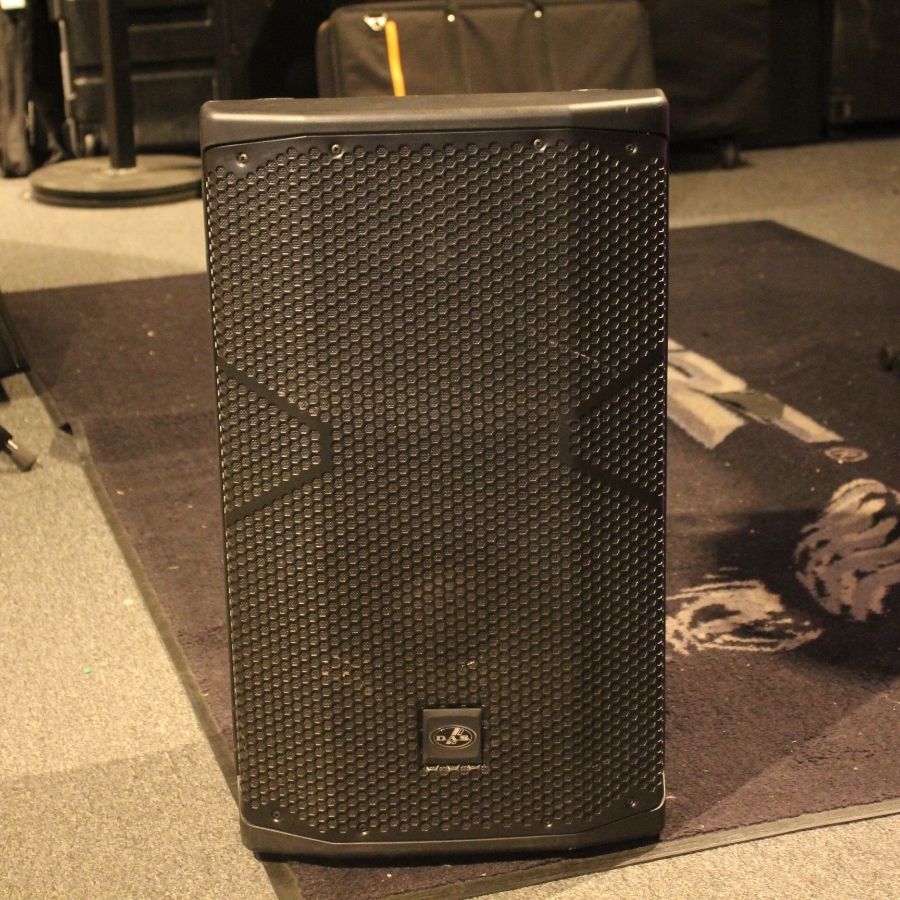

D.A.S. Audio Altea 712A 2-Way 1500-Watt 12" Active Loudspeaker - Used

Type: Used
Condition:

The ALTEA-712A is a high-powered model from DAS Audio’s ALTEA Series. It is equipped with a 1500 Wpeak Class D two-channel amplifier that provides extended bandwidth, wide dynamic range and exceptionally low distortion. Digital Finite Impulse Response (FIR) filters are used in the signal processing of the ALTEA 712A system.

The DAScontrol interface allows users to configure voicing presets, input/output levels, EQ modes, delay and source mixing by way of a high-end 24-bit quality DSP and LCD screen on the rear of the cabinet. The remote control and monitoring APP DASlink of the ALTEA-700 series powered systems allows users to wirelessly stream music from mobile devices in high-definition stereo.

The high-performance transducers include the DAS 12F4 loudspeaker, which provides accurate low frequency reproduction with a deep, powerful bass. High frequencies are handled by the brilliant M-28 FEM optimized compression driver with 1″ exit providing exceptional performance and smooth reproduction.

SPL Max: 130 dB
Dispersion: 90º x 60º
Weight: 17,5 kg ( 38,6 lb )

Frequency Range(-10 dB): 60 Hz – 20 kHz
Horizontal Coverage(-6 dB): 90º
Vertical Coverage: 60º
Maximum Peak SPL at 1m: 130 dB
Nominal Amplifier Power (continuous): 750 W
Nominal Amplifier Power (peak): 1500 W
Input Type: Balanced
Input Impeadance: 20 kohms
Input Sensitivity: 1.95 V (+8 dBu)
Audio Signal Input Connector: 2 x Female XLR
AUX Input: 1 x 3.5 mm Mini Jack
Audio Signal Loop Thru Connector: 1 x Male XLR
Control: DASlink, DAScontrol
Current Draw 230 V / 115 V: 1.5 A/3.0 A

DImensions: 25.8" H x 15" W x 13.8" D
Weight: 38.6 lb

SN: 10404910000032
