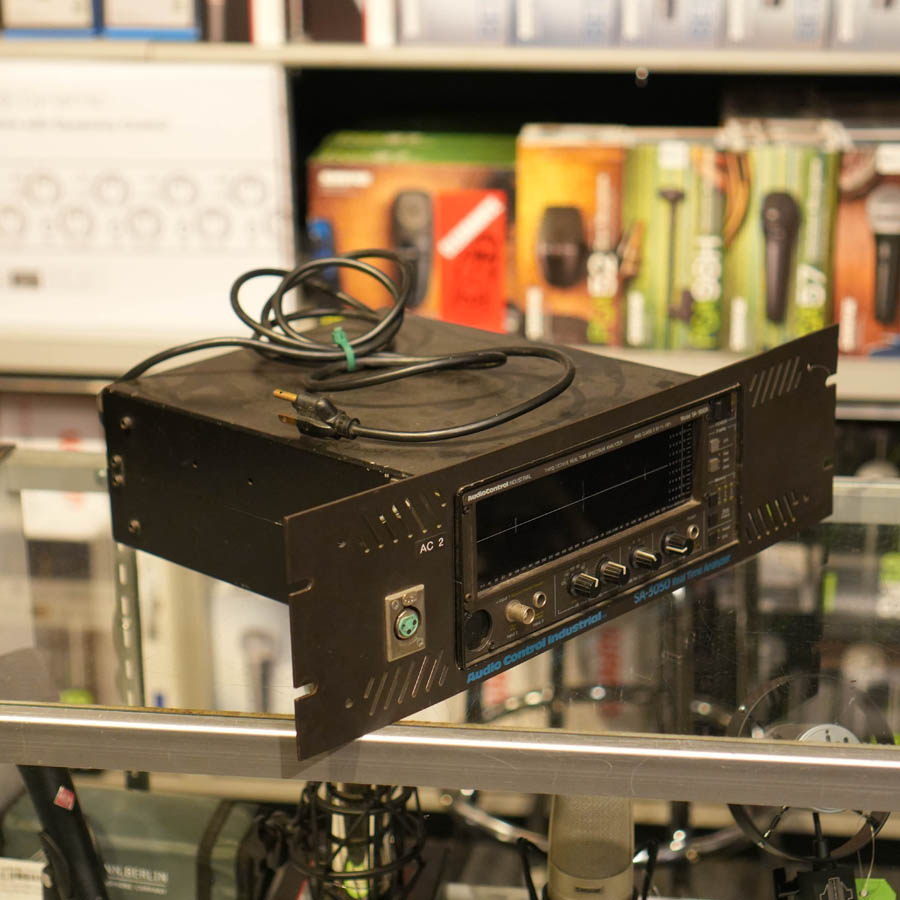

Audio Control Industrial SA-3050A Spectrum Analyzer - Used

Type: Used
Condition: Very Good

The Audio Control Industrial SA-3050A is an affordable, measurement-grade, one-third octave real-time analyzer designed for audio signal analysis. Previous analyzer designs were either too costly for the average consumer or too inaccurate for serious use. The SA-3050A overcomes these inadequacies by combining a state-of-the art microprocessor based design with modern electronic manufacturing techniques.

The SA-3050A offers the following features:
30 one-third octave bandwidth filters.
Fourth-order filters conform to ANSI Sl.11-1971 Class II, type E standards.
Internal pink noise source.
9 X 30 large-format LED display with 1 dB Resolution.
Six internal memories with battery backup.
Frequency response averaging for up to six stored response curves.
Peak-hold function.
SPL scale with bargraph display or full-screen digital readout.
92 dB display range.
Signal input from balanced microphone input, balanced phone jack or unbalanced BNC
connector.
Battery operation (optional).
Printer port (optional).

SN: C13590
Made in USA in Mountlake Terrace, WA
